Dme&jde Hydraulic Hose Assembly Installation Technical Requirements Guide
Product Introduction
This is a professional DME&JDE Hydraulic Hose Assembly Installation & Technical Requirement Guide. It focuses on the key technical specifications and correct installation practices to ensure the safe and efficient operation of hydraulic systems.

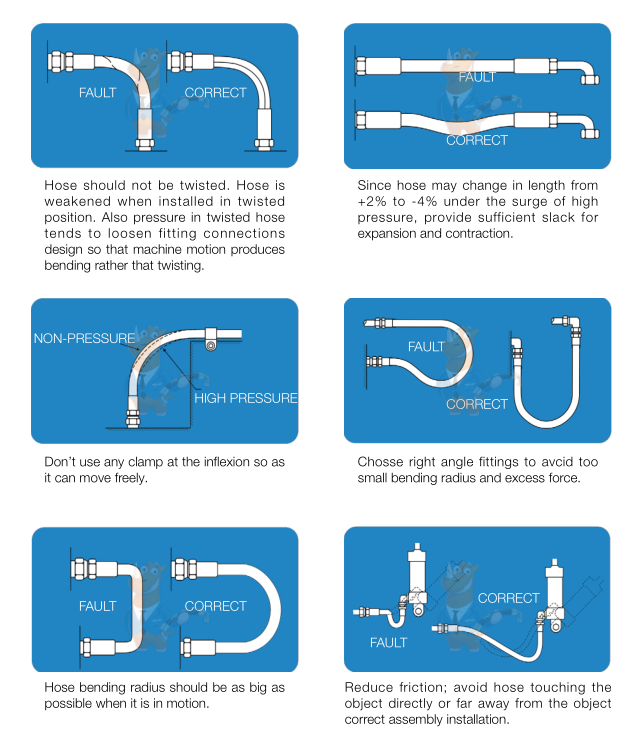

The guide covers critical aspects such as anti-twisting during installation, length tolerance under high pressure, minimum bending radius, clamp-free inflexion design, and friction reduction measures, clearly distinguishing between "FAULT" and "CORRECT" installation methods. It is an essential technical reference for engineers, purchasers, and on-site installers to prevent hose damage, system failure, and cost loss.
Product Advantages
Error-Free Installation Guidance: Clearly illustrates "Fault vs. Correct" scenarios for bending, length, and clamping, helping on-site staff avoid common installation mistakes that damage hoses.
System Stability Assurance: Specifies maximum length tolerance (+2% to -4%) under high pressure and minimum bending radius rules, ensuring long-term stability of the hydraulic system.
Cost Reduction: Prevents premature hose wear, connection loosening, and replacement costs caused by improper installation, reducing overall maintenance expenses.
Easy to Understand: Visual diagram with clear labels and examples, making technical requirements easy to master for all levels of technical staff.
Company Introduction
DME&JDE is committed to design, manufacture and support fluid transmission solutions. We insist on application-orientation to solve all problems during transmission. Advanced Production technology, wide ranges of flexible hoses, fluid connectors and rich export and projects experience guarantee our capacity to design right OEM fluid solutions for all transmission difficulty.
DME&JDE continuously expands our product ranges and value-added service and improve technologies and equipment to supply products outperform industry standards and exceed customers' demanding expectations.
DME was established in 1993. Fluid connectors are manufactured by standard automation equipment and in accordance with SAE, ISO, BSI, and DIN standards, with fittings available in JIC, BSP, ORFS, and heavy-duty bite type.
DME is the main supplier to major vendors in Europe and America.
JDE, founded in 2009, is dedicated to hydraulic hoses, industrial hoses, and other industrial hose manufacturing.
JDE adopts German, American, and Italian advanced equipment. All product lines meet or exceed SAE J517, DIN/EN853, EN854, EN857, ISO, GB, and other industry standard requirements.
DME&JDE FLUID CO., LTD. was established in 2021. The investors are DME and JDE. We work with the concept of "ONE STOP SOLUTION": Assembly, Hose Crimping, Hose Cutting, Hose Pressure Testing, Hose Skiving, and Assembly Parts.
Our aim is to design hydraulic fluid solutions, providing long-lasting and stable support for all industries, and ensuring that our dealers and end users are free from hydraulic-related accidents, unexpected shutdowns, and significantly reduce procurement costs, quality assurance costs, and other associated costs.
