Natural Bending Direction Premade Hydraulic Hose Assemblies Standard

Name: Natural Bending Direction Premade Hydraulic Hose Assemblies Standard
Brand: DME&JDE
Price: 29.9 USD

Buy cheap Natural Bending Direction Premade Hydraulic Hose Assemblies Standard product

Brand Name : DME&JDE

Model Number : Hose Assemblies

Certification : MSHA & BV & GOST & IATF 16949 & ISO 9001 & ISO 14001 & ISO 45001 & DAKKS & SGS & MA & DEKRA

Place of Origin : Hengshui City, Hebei Province, China

MOQ : 10 (MOQ)

Price : US$ 29.9-39.9

Payment Terms : T/T

Supply Ability : 10 (MOQ)US$ 29.9-39.9

Delivery Time : 30days

Packaging Details : wooden

Product Name : Hose Assemblies

Keyword : Hydraulic Hose Assembly

Service Focus : Assembly Order Coding, Length & Angle Measurement Standard

Assembly Angle Tolerance : ± 3°

Measurement Reference : End face of the fitting / Center of the bent fitting core

Key Specifications : Displacement Angle, Overall Length, Spring Guard (RS), Natural Bending Direction

Order Code Formats : Left Fitting Part No / Right Fitting Part No × Hose Part No × Overall Length V[Angle] + RS/[Bending Direction]

Application Scenario : DME&JDE Hydraulic Hose Assembly Customization

Contact Now

Dme&jde Hose Assembly Natural Bending Direction Specification Guide

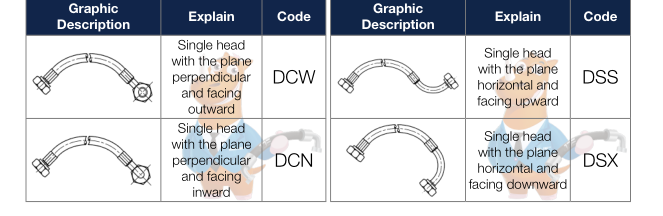

Natural Bending Direction

When both ends of the hose assembly are bent fittings, there is an angular relationship between the two bent fittings during assembly. To measure this, straighten the hose assembly and view it in a straight line. Position bent fitting 1 vertically upwards and measure the angle between bent fitting 2 and the vertically positioned bent fitting 1 in a clockwise direction. This angle is known as the assembly angle of the hose assembly and is represented by V. For example, if the assembly angle α is 225°, it is marked as V225.
