3TE ( High Pressure ) Textile Braided Hydraulic Hose
Applicable Specs:
■ DIN EN 854 3TE ■ DIN 20021 3TE ■ TS 6388 EN 854 TIP 3TE
■ ISO 4079-3TE
■ ISO 1307
Applications:
Hydraulic Hose specification
| Part Number |
Hose Size |
I.D. |
R.0.D. |
0.D. |
Operating
Pressure |
Burst
Pressure |
Bend
Radius |
Weight |
Length
Per PCS |
Ferrule |
| I.D. |
Dash
Size |
mm |
inch |
mm |
mm |
mm |
bar |
psi |
bar |
psi |
mm |
kgs/m |
meter |
DALE Code |
| JDE 211103-05(3TE) |
-3 |
4.8 |
3/16" |
4.4-5.2 |
/ |
11.0-13.6 |
160 |
2320 |
640 |
9280 |
40 |
- |
50/100 |
PUSH-ON-2TE-03 |
| JDE 211103-06(3TE) |
-4 |
6.4 |
1/4" |
5.9-6.9 |
1 |
13.0-15.2 |
145 |
2103 |
580 |
8410 |
45 |
- |
50/100 |
PUSH-ON-2TE-04 |
| JDE 211103-08(3TE) |
-5 |
8.0 |
5/16" |
7.4-8.4 |
/ |
16.1-17.7 |
130 |
1885 |
520 |
7540 |
55 |
- |
50/100 |
PUSH-ON-2TE-05 |
| JDE 211103-10(3TE) |
-6 |
9.5 |
3/8" |
9.0-10.0 |
/ |
17.7-19.3 |
110 |
1595 |
440 |
6380 |
70 |
- |
50/100 |
PUSH-ON-2TE-06 |
| JDE 211103-12(3TE) |
-8 |
12.7 |
1/2" |
12.1-13.3 |
/ |
20.7-22.7 |
93 |
1349 |
372 |
5394 |
85 |
- |
50/100 |
PUSH-ON-2TE-08 |
| JDE 211103-16(3TE) |
-10 |
16.0 |
5/8" |
15.3-16.5 |
/ |
24.9-26.9 |
80 |
1160 |
320 |
4640 |
105 |
- |
50/100 |
PUSH-ON-2TE-10 |
| JDE 211103-19(3TE) |
-12 |
19.0 |
3/4" |
18.2-19.8 |
/ |
28.0-30.0 |
70 |
1015 |
280 |
4060 |
130 |
- |
50/100 |
PUSH-ON-2TE-12 |
| JDE 211103-25(3TE) |
-16 |
25.4 |
1" |
24.6-26.2 |
/ |
34.4-37.4 |
55 |
798 |
220 |
3190 |
150 |
- |
50/100 |
PUSH-ON-2TE-16 |
| JDE 211103-32(3TE) |
-20 |
31 |
1-1/4" |
30.8-32.8 |
/ |
40.8-43.8 |
45 |
653 |
180 |
2610 |
190 |
- |
20-40 |
OEM Type |
| JDE 211103-38(3TE) |
-24 |
38 |
1-1/2" |
37.1-39.1 |
/ |
47.6-51.6 |
40 |
580 |
160 |
2320 |
240 |
- |
20-40 |
OEM Type |
| JDE 211103-51(3TE) |
-32 |
51 |
2" |
49.0-51.8 |
/ |
60.3-64.3 |
33 |
479 |
132 |
1914 |
300 |
- |
20-40 |
OEM Type |
| JDE 211103-60(3TE) |
-40 |
60 |
2-1/2" |
58.8-61.2 |
/ |
70.0-74.0 |
25 |
363 |
100 |
1450 |
400 |
- |
20-40 |
OEM Type |
| JDE 211103-80(3TE) |
-48 |
80 |
3" |
78.8-81.2 |
1 |
91.5-96.5 |
18 |
261 |
72 |
1044 |
500 |
- |
20-40 |
OEM Type |
| JDE 211103-100(3TE) |
-64 |
100 |
4" |
98.6-101.4 |
/ |
113.5-118.5 |
10 |
145 |
10 |
580 |
300 |
- |
20-40 |
OEM Type |

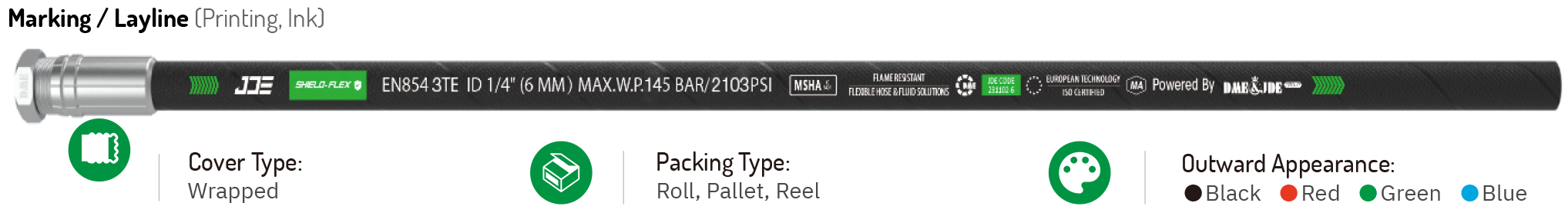

Marking / Layline (Printing, Ink)
Quality Control
Certificate
Related Product
FAQ
1. Q: What is your sample policy?
A: Free samples available if we have ready part in stock, shipping cost is on buyer's side.
2. Q: How do you guarantee your quality and what after-sale service do you have?
A: Our factory follow the quality standard in every produce process. Any quality problem within 12 months after purchase, we are responsible for it.
3. Q: How do you ensure the quality?
A: We have strict QC process:
1). For raw material;
2). During the half of production;
3). Final QC before shipment
More details please review production details.
4. Q: What is your terms of price?
A: EXW, FOB, CFR, CIF, DDU.
5. Q : How do you make our business long-term and good relationship?
A: Build Trust: Trust is the foundation of any long-term relationship. To establish trust, we need to be transparent in our dealings with customers and provide consistent and reliable services.
Listen to Customers: Listen carefully to customers' feedback, understand their needs, and customize solutions according to their requirements.
Communicate: Maintain regular and open communication with customers, keeping them informed about updates, new products, and services.
Reward Loyalty: We value our loyal customers and reward their business with discounts, special offers, and personalized services.
Provide Excellent Customer Service: We ensure our customer service is top-notch, responding promptly to inquiries and complaints, and going above and beyond to provide exceptional service that exceeds customers' expectations.
6. Q: What certificates do you have?
A: Each hose we produce has obtained corresponding certificates, especially ISO and ABS system certificates, which is the recognition of our production capacity.
7. Q: Is it possible to visit your factory?
A: We warmly welcome you to visit our factory at any of your convenient time.
